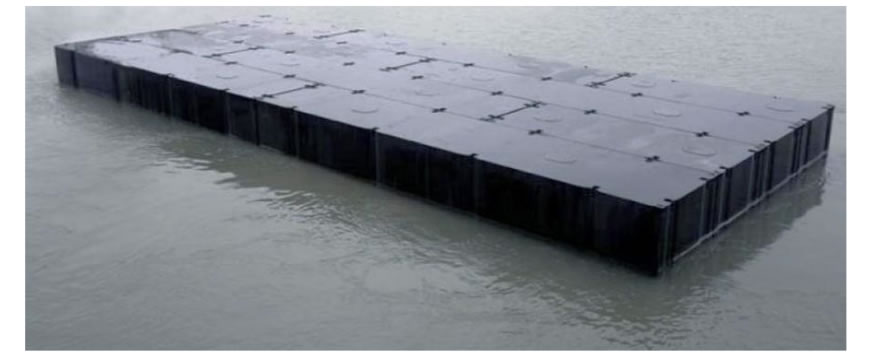

Sectional Barge (TBN)

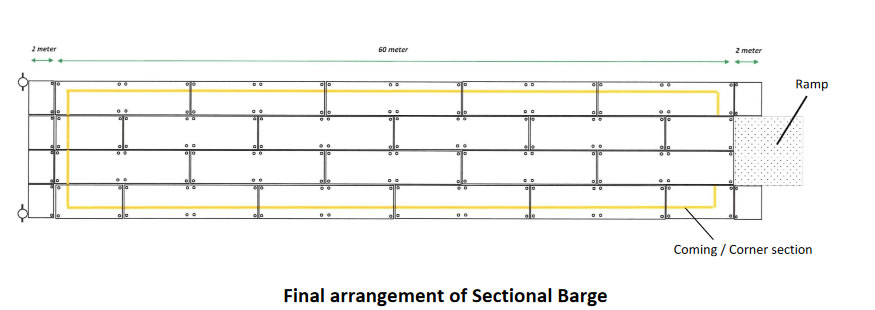

Length: 64 mtr (28 pontoons, connected with plate/pin connection) (transport via road possible)
Width: 12 mtr
Draft: 1,2 mtr (loaded)
Coming: All around the loading area, 0,8 mtr height
Capacity: 600/650 MT
Ramp: 6 x 6 mtr / extra reinforced / electrically handled
Deck: 16 mm / 10MT per m2
